Gilman Ram Pump Model MF10



Pump Lift Diagram Of Gilman Ram Pump & Enterprises
Pump Lift Diagram - Gilman Ram Pump & Enterprises

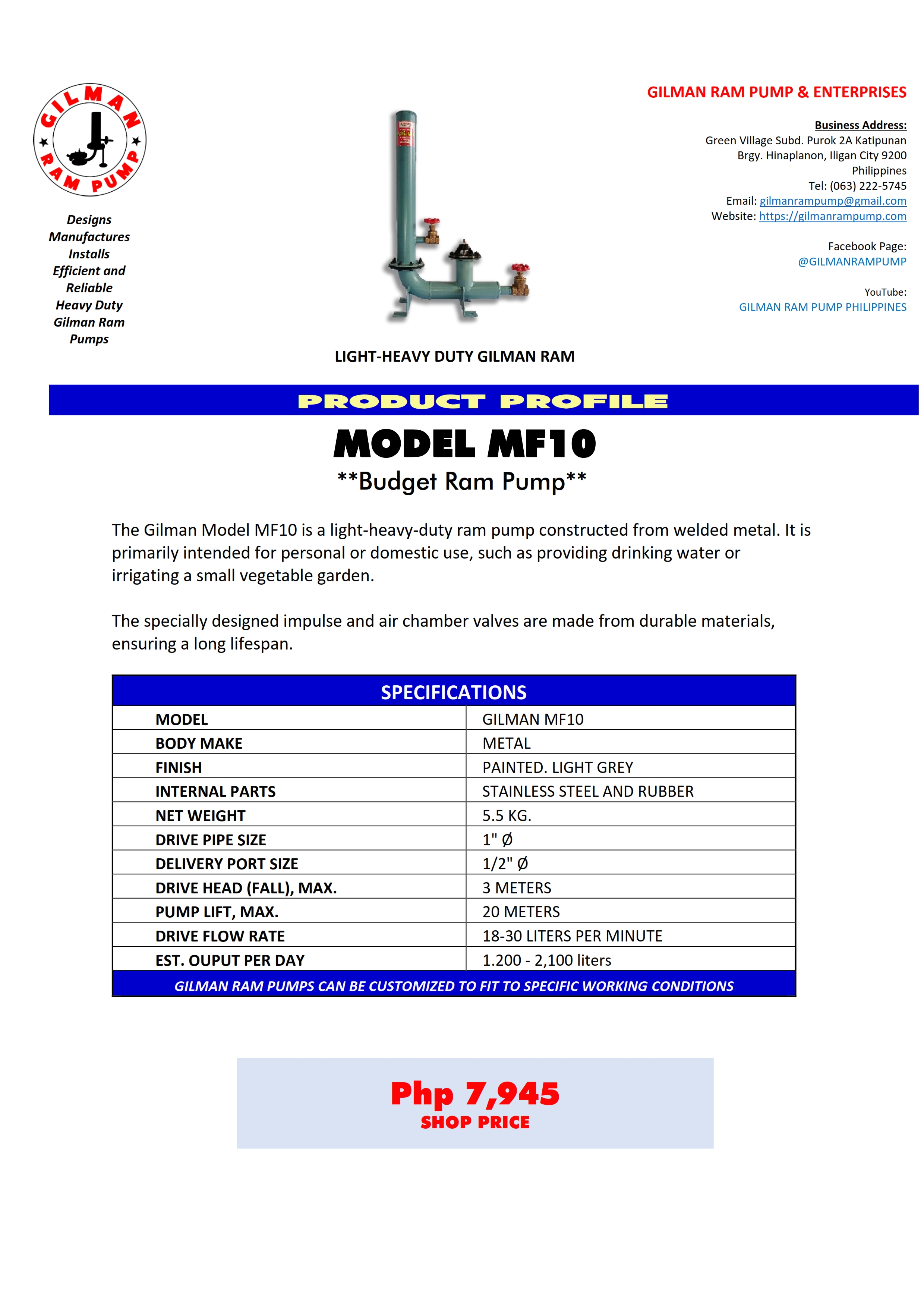

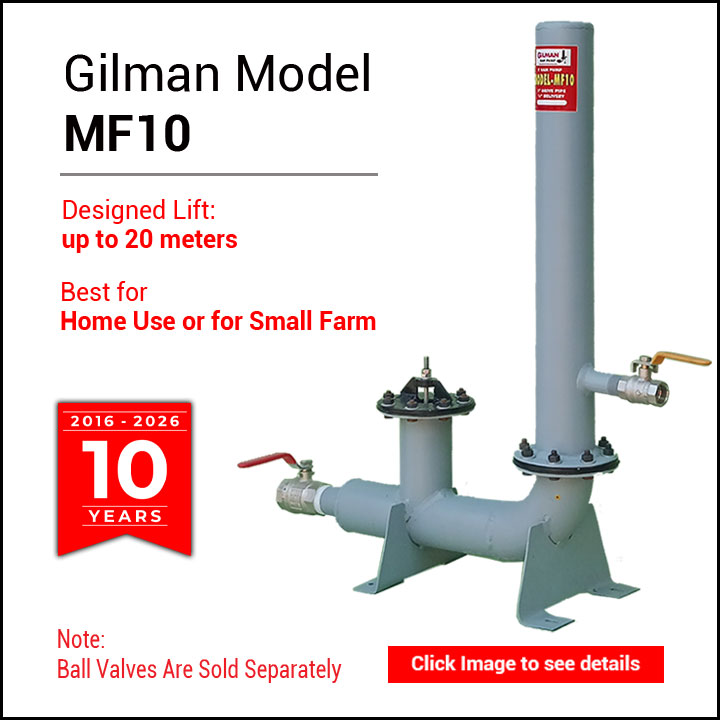

GILMAN MF10

MODEL LIGHT HEAVY DUTY

** Budget Ram Pump for Low-Lift Applications** The Gilman Model MF10 is a compact and cost-effective hydraulic ram pump designed for reliable water delivery — without electricity or fuel. Built from welded metal construction with durable internal components, the MF10 is ideal for light-duty applications where a simple and dependable water solution is needed. It features specially engineered impulse and air chamber valves designed for continuous operation and long service life. This model is best suited for: • Household water supply • Drinking water systems • Small gardens and backyard irrigation • Remote areas with limited resources The MF10 performs efficiently in installations with low to moderate lift (up to 20 meters) and sufficient water flow.

WORKING PARAMETERS:

  • Daily Output: up to 3,000 liters subject to actual operating flow rate, drive head and installation efficiency

  • Max. Pump Lift: 20 meters

  • Pumping Distance: Any Distance

  • Drive Port: 1 inch NPT

  • Delivery Port: 1/2 inch NPT

  • Water Supply Flow Rate: 20 - 30 LPM

  • Weight: 8

  • Packaging Dimension: 47 cm x 15 cm x 33 cm



From ₱ 7,945.00 ₱ 7,547.75
