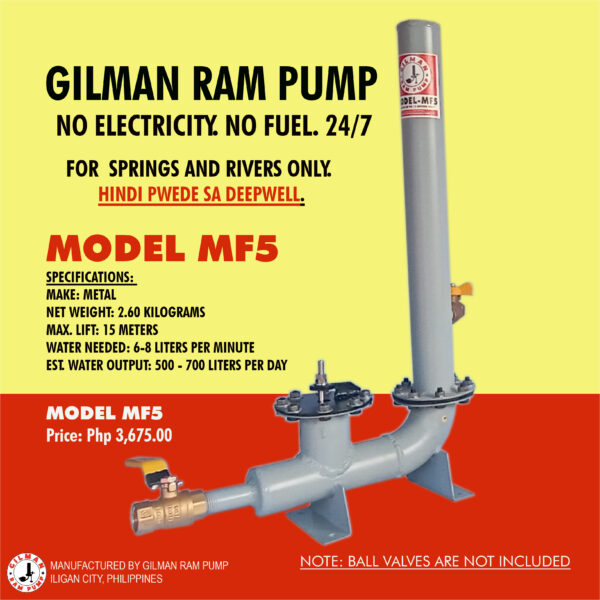

GILMAN Model MF5

Description

NO ELECTRICITY. NO FUEL. OPERATES 24/7
WATER PUMP FOR RIVERS AND SPRINGS ONLY.
NOT FOR DEEPWELLS.

The Model MF5 is designed for Pump Lifts up to 15 meters. .

This model offers a high-quality fitting type ram because the connections are flanged and welded. It has a very high-performance factor compared to ordinary DIYs which are commonly connected by way of pipe threads. Pipe threads don’t last long; welded ones do.

MF5 SPECIFICATIONS
Make: Welded Special Steel Fittings
Color: Light Gray
Assembly: Flange
Supply Water Flow rate needed: 6-8 liters per minute
Pump Lift: 15 meters
Drive Pipe Size: 1/2″ Ø
Delivery Pipe: 1/2″ Ø

Packaging: Double-wall carton

*************************************************************************************

About ram pump

A ram pump is a pure water-powered water pump. It is applicable on rivers, streams, and springs only; it doesn’t apply on water wells or boreholes and on other confined and stagnant waters such as lakes and ponds. However, to some limited extent, it can be used on ponds and lakes where there is a flowing outlet or where siphoning to create a water jump is possible. A ram pump needs a free and continuous flow of water 24/7 in order to function, continuously.

If you want to pump the water from a river or a creek, or a spring to your farm or to your house located above it without using electricity, a ram pump installation is a viable solution.
