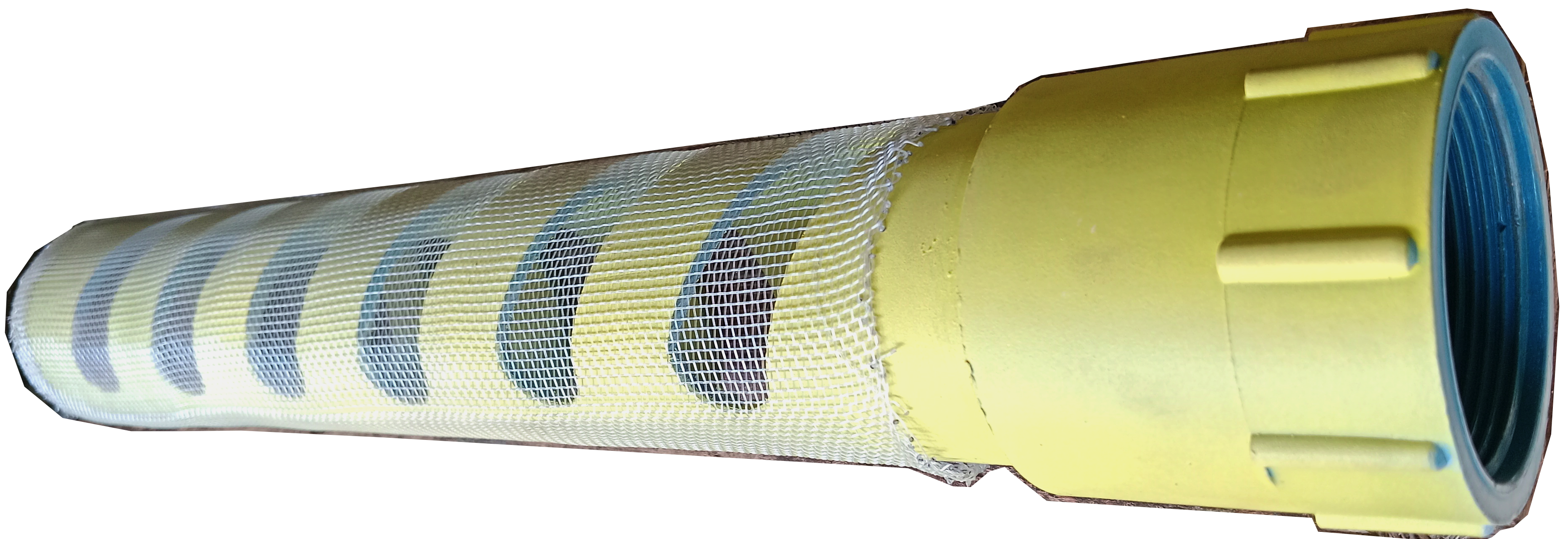

Intake Pipe Strainer Model IPS15 (1-1/2-inch)
The Gilman Intake Pipe Strainer Model IPS15 is designed to prevent leaves, debris, and other solid materials from entering the water supply pipeline of a hydraulic ram pump system.
Compatible with a 50 mm (1-1/2-inch) PE Male Threaded Adapter, the strainer is installed at the submerged inlet of the intake pipe. It helps maintain unobstructed water flow and protects the pump system from debris that may interfere with normal operation.
Technical Specifications:
- Model: IPS15
- Connection Size: 1-1/2-inch NPS
- Compatible Fitting: 50 mm PE Male Threaded Adapter
- Type: Intake Pipe Strainer
- Application: Hydraulic Ram Pump Water Intake System
- Installation: Submerged at the intake pipe inlet
- Function: Screens leaves, debris, and other solid materials from incoming water
- Dimensions: 35 cm x 6 cm
Maintenance Note:
Select the correct strainer size according to the intake pipe diameter. Regular inspection and cleaning are recommended to prevent clogging and maintain adequate water flow.
